Frequency Band:
VHF, UHF
Frequency Range:
VHF: 136-174 MHz
UHF: 403-470 MHz
Power Output:
1-25W, 25-45W - VHF, 1-25W, 25-40W - VHF
Number of Channels/Groups/Zones:
128 Channels
Channel spacing:
Loading...
Motorola Solutions

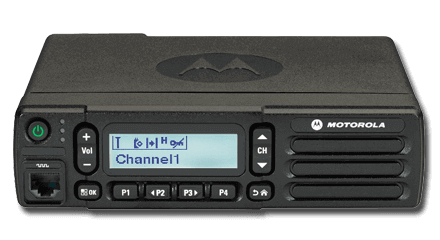

The power of digital communications is now within reach with the MOTOTRBO XPR 2500 mobile two-way radio. Compact and capable, the XPR 2500 keeps workers connected whether they are picking up cargo or transporting passengers. Delivering the best in digital radio technology, with features like integrated voice systems capability, twice the calling capacity, and clearer voice communications, the XPR 2500 is versatile and powerful. For those operating on analog, the XPR 2500 lets you upgrade to digital at your own pace and budget, with simple scalability to add functions and features. For affordable digital voice systems capability, the MOTOTRBO XPR 2500 gets the job done with clarity and ease.
Frequency Band:
VHF, UHF
Frequency Range:
VHF: 136-174 MHz
UHF: 403-470 MHz
Power Output:
1-25W, 25-45W - VHF, 1-25W, 25-40W - VHF
Number of Channels/Groups/Zones:
128 Channels
Channel spacing:
Dimensions H x W x D
1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
Weight
2.9 lbs (1.3kg)
Display
Monochrome
Operating temperature
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP54
Transmit Interrupt Capability
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it's needed.
Over the Air Programming (OTAP)
Manages, writes and reads up to 5,000 radio configurations over the air.
Enhanced Privacy
Built-in scrambling for increased security.
Systems Capability
Experience the far-reaching coverage of MOTOTRBO. IP Site Connect uses the Internet to extend coverage to create a wide-area network, while Capacity Plus single-site trunking expands capacity to over 1000 users without adding new frequencies.
Compatible with Radio Management Suite
Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.
Intelligent Audio
Radio volume automatically adjusts to compensate for background noise so workers don't have to adjust their radio volume to avoid missing a call in loud situations or disturbing others when they move into quiet places.
IMPRES Audio
Whether it's a whisper during a covert operation in a dark alley or commanding a noisy fire scene, IMPRES audio accessories are loud, clear and intelligible in both analog and digital modes.
IP54 Rated
Protects your radio from dust and spills.
From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.
 | HAE4010 UHF Wide Area Through-Hole Mount Antenna for the 406-420 MHz range, 3.5 dB Gain, Mini-U |
 | HAE4011 UHF Wide Area Through-Hole Mount Antenna for the 450-470 MHz range, 3.5 dB Gain, Mini-U |
 | HAE6022 UHF Wide Area Through-hole Mount Antenna for the 403-527 MHz range 2dB Gain, Mini-U |
 | RAE4004ARB UHF Wide Area Through-Hole Mount Antenna for the 445-470 MHz range, 5 dB Gain, Mini-U (with base) |
 | HAE4002 UHF Urban Roof Mount 1/4 Wave Antenna for the 403-430 MHz range, Mini-U |
 | HAE4003 UHF Urban Roof Mount 1/4 Wave Antenna for the 450-470 MHz range, Mini-U |
 | HAD4006 VHF Urban Roof Mount 1/4 Wave Antenna for the 136-144 MHz range, Mini-U |
 | HAD4007 VHF Urban Roof Mount 1/4 Wave Antenna for the 146-150.8 MHz range, Mini-U |
 | HAD4008 VHF Urban Roof Mount 1/4 Wave Antenna for the 150.8-162 MHz range, Mini-U |
 | HAD4009 VHF Urban Roof Mount 1/4 Wave Antenna for the 162-174 MHz range, Mini-U |
 | HAD4022 VHF Wide Area Through-hole Mount Antenna for the 132-174 MHz range 3dB Gain, Mini-U |
 | RLN6466 Low Profile Trunnion Kit keeps radio tucked up under dash |
 | RLN6467 High Profile Trunnion Kit with under dash or floor mount |
 | RLN6468 Key Lock Trunnion Kit provides extra protection from theft |
| FTN6083 In-Dash Mounting Kit - DIN |
 | HKN4137 Power Cable to Battery - 10 foot, 15 amp 14 AWG |
 | HKN4191 Power Cable to Battery - 10 foot, 20 amp 12 AWG |
 | HKN4192 Power Cable to Battery - 20 foot, 20 amp 10 AWG |
 | HKN9327 Ignition Sense Cable |
| 3012045001 Trunnion Mounting Screws |
 | RLN4836 Emergency Footswitch can be used with a visor microphone |
 | RLN4856 Remote Mount Footswitch Push-to-Talk to interface with your visor microphone |
 | RLN4857 Remote Mount Pushbutton Push-to-Talk to interface with your visor microphone |
 | PMMN4090 Compact Microphone |
 | PMMN4091 Heavy-Duty Microphone |
 | PMMN4089 Keypad Microphone |
 | GMMN4065 Visor Microphone |
| PMLN6481 Telephone Style Handset with hang-up cup |
| PMMN4098 Desktop Microphone |
 | HLN9073 Microphone Hang-Up Clip (Requires installation) |
 | HLN9414 Universal Microphone Hang-Up Clip (No installation required) |
| HSN8145 7.5W External Speaker |
 | RSN4001 13W External Speaker |
 | GMKN4084 Speaker Extension Cable |
The Motorola XPR 2500 Series is available in the following models.
