Motorola Solutions

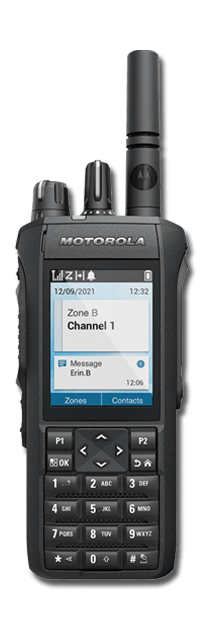

MOTOTRBO R7

Break Through the Noise. Be Heard

The new MOTOTRBO™ R7 two-way radio has arrived! When communication is critical, clarity is essential. With exceptional noise canceling, loudness, and voice clarity, your team will never miss a conversation or mishear an instruction.

Built to last and ready to connect your team, MOTOTRBO R7 is designed to perfectly meet the needs of your business. From busy schools and hospitals to loud warehouses and event venues, your team can stay focused on the task ahead and help you meet deadlines without jeopardizing safety.

Your business relies on communications. MOTOTRBO R7 is a digital portable two-way radio that offers game-changing audio capabilities in a rugged, future-ready device.

  • Loud and Clear
  • Connected When It Counts
  • Built to Outperform

The MOTOTRBO R7 is available as a Full Keypad Model (FKP) or a No Keypad Model (NKP).

DMR (MOTOTRBO)

Operational Systems

Dual Capacity Direct Mode
Conventional
IP Site Connect
Capacity Plus Single/Multi-Site (Optional)
Capacity Max (Optional)

Frequency bands:
VHF, UHF, 800/900 MHz

Frequency Range:
VHF: 136-174 MHz
UHF: 400-527 MHz
800/900: 806-941 MHz

Number of Channels/Groups/Zones:

Full Keypad Model (FKP)
1000 Channels

No Keypad Model (NKP)
64 Channels

Power Output:
VHF: 5 Watts
UHF: 4 Watts
800/900: 2.5 Watts

Channel Spacing:
12.5 / 25 kHz

Battery Life

MOTOTRBO R7 with 2200 mAh Slim IMPRES Li-Ion battery
Digital / Analog Battery Life: 19 / 14.5 hrs UHF / 20 / 15 hrs VHF

MOTOTRBO R7 with 2850 mAh IMPRES Li-Ion battery
Digital / Analog Battery Life: 25 / 19 hrs UHF / 26 / 19.5 hrs VHF

MOTOTRBO R7 with 3200 mAh HazLoc IMPRES Li-Ion battery
Digital / Analog Battery Life: 28 / 21.5 hrs UHF / 29 / 22 hrs VHF

Wi-Fi

Wi-Fi 2.4/5.0 GHz
Wi-Fi 5 / IEEE 802.11a/b/g/n/ac

BLUETOOTH

Bluetooth 5.2
Class 2, 33 ft (10 m)
WPA3 Wi-Fi Security Protocol Compliant

Dimensions H x W x D (with standard battery)

MOTOTRBO R7 with 2200 mAh Slim IMPRES Li-Ion battery

Full Keypad Model (FKP)
5.2 x 2.2 x 1.4 in.

No Keypad Model (NKP)
5.2 x 2.2 x 1.2 in.

MOTOTRBO R7 with 2850 mAh IMPRES Li-Ion battery

Full Keypad Model (FKP)
5.2 x 2.2 x 1.4 in.

No Keypad Model (NKP)
5.2 x 2.2 x 1.2 in.

MOTOTRBO R7 with 3200 mAh HazLoc IMPRES Li-Ion battery

Full Keypad Model (FKP)
5.2 x 2.2 x 1.6 in.

No Keypad Model (NKP)
5.2 x 2.2 x 1.5 in.

Weight

MOTOTRBO R7 with 2200 mAh Slim IMPRES Li-Ion battery

Full Keypad Model (FKP)
11 oz

No Keypad Model (NKP)
10 oz

MOTOTRBO R7 with 2850 mAh IMPRES Li-Ion battery

Full Keypad Model (FKP)
12 oz

No Keypad Model (NKP)
11 oz

MOTOTRBO R7 with 3200 mAh HazLoc IMPRES Li-Ion battery

Full Keypad Model (FKP)
13 oz

No Keypad Model (NKP)
12 oz

Keypad / Keys
Touchscreen

Display
2.4 in. 320 x 240 px. QVGA Display

Operating temperature
-22 °F to 140 °F

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G, 810 H

IP Standards
IP68 (waterproof up to 2 meters for 2 hours)
IP66 (concentrated water jet pressure)

Intrinsically Safe
Intrinsically safe option (UL TIA-4950)

Motorola Solutions MOTOTRBO R7

Break Through the Noise. Be Heard

MOTOTRBO R7 is a digital portable two-way radio that offers game-changing audio capabilities in a rugged, future-ready device. Its advanced audio processing ensures that your communications are loud and clear, while its rugged construction is ready for harsh environments, and advanced connectivity options get your workforce ready for tomorrow.

Sharp, Clear Audio
MOTOTRBO R7 lets your team hear and be heard the first time — when it matters most. Adaptive Dual Microphone Noise Suppression brings game-changing noise canceling to your team, so you can hear them over the deafening noise of heavy machinery, a roaring stadium at full capacity, or wherever they are. Automatic Acoustic Feedback Suppression intelligently cancels out the feedback of other close-by radios, for a seamless voice experience in tightly packed areas. Intelligent Audio monitors background noise and adjusts speaker volume so users don’t have to, ensuring calls are always at the perfect volume.

Be Heard Above All Else
MOTOTRBO R7 delivers unprecedented loudness, so your team can hear in any situation. Its powerful speaker delivers a booming loudness of 102 phons, four times louder than a shouting conversation. R7 also features a programmable extra loud profile, bringing total loudness to 107 phons on the radio and with the remote speaker microphone — four times louder than a motorcycle at close range.

Customizable Audio Experience
MOTOTRBO R7 can be adapted with accessories that are specially designed to make your fleet easier to use and even more capable, especially in loud environments. Its re-engineered accessory port adds more robustness and longevity to the point where your accessories connect to the radio, while making it more resistant to dust and corrosion. Remote speaker microphones and other audio accessories let you quickly reach and use your radio. R7’s extra loud profile can be supported by several purpose-built. And our IMPRES™ technology ensures that R7 works seamlessly with your Motorola Solutions accessories, so every call is heard perfectly.

Motorola MOTOTRBO R7 Key Features

  • UHF/VHF
  • Wi-Fi 2.4/5.0 GHz
  • WPA3 Wi-Fi security protocol compliant
  • Bluetooth 5.2
  • 2.4" 320 x 240 px. QVGA display
  • Automatic Acoustic Feedback Suppression
  • Adaptive Dual Microphone Noise Suppression
  • Intelligent Audio
  • IMPRES™ technology
  • Programmable loudness up 107 phons
  • Wideband speaker and microphones
  • Up to 28 hours of battery life
  • IP68 (waterproof up to 2 meters for 2 hours)
  • IP66 (concentrated water jet pressure)
  • Intrinsically safe option (UL TIA-4950)
  • Rugged to MIL-STD 810
  • 5 years of hardware repair, technical support, software updates and premium features

Brochures

Catalogs

Data Sheets

Whitepapers

Videos

MOTOTRBO R7 Demo: Enhanced Audio Capabilities

The MOTOTRBO R7 radio features advanced audio technology such as Adaptive Dual Microphone Noise Suppression & Automatic Acoustic Feedback Suppression for clear communication, even in loud environments. With intelligent audio & audio playback feature, users can focus on the task at hand.

MOTOTRBO R7 Demo: Form Factor and Size

The MOTOTRBO R7 radio - our most ergonomic yet, with a slim design, large display, and unbeatable durability. Its IP66 and IP68 ratings make it dust tight and protected from water immersion. The redesigned accessory port is waterproof and dustproof, and it fits comfortably in your hand, on your belt, or even in your pocket. The perfect combination of size, performance, and ruggedness!

MOTOTRBO R7 Demo: Intuitive User Interface

The MOTOTRBO R7 radio boasts an advanced physical design, optimized emergency button, large 2.4" display, and intuitive knob design for efficient communication. Its improved keypad, larger screen and optimized digital interface make it easy to use and navigate.

Motorola AN000348A01

AN000348A01

400 – 527 MHz Whip Antenna

Motorola AN000350A01

AN000350A01

400 – 450 MHz Stubby Antenna

Motorola AN000351A01

AN000351A01

440 – 490 MHz Stubby Antenna

Motorola PMAE4079

PMAE4079

UHF/GPS Combination Wideband Slim Whip Antenna (403-527 MHz)

Motorola PMAD4117

PMAD4117

VHF/GPS Combination Helical Antenna (136-155 MHz)

Motorola PMAD4116

PMAD4116

VHF/GPS Combination Helical Antenna (144-165 MHz)

Motorola PMAD4118

PMAD4118

VHF/GPS Combination Helical Antenna (152-174 MHz)

Motorola PMAE4069

PMAE4069

UHF/GPS Combination Stubby Antenna (403-450 MHz)

Motorola PMAE4070

PMAE4070

UHF/GPS Combination Stubby Antenna (440-490 MHz)

Motorola PMAE4071

PMAE4071

UHF/GPS Combination Stubby Antenna (470-527 MHz)

Motorola PMAD4119

PMAD4119

VHF/GPS Combination Stubby Antenna (136-148 MHz)

Motorola PMAD4120

PMAD4120

VHF/GPS Combination Stubby Antenna (146-160 MHz)

Image Not Available

PMAD4121

VHF Stubby Antenna (160-174 MHz)

Motorola 32012144001

32012144001

Gray Antenna ID Band (pack of 10)

Motorola 32012144002

32012144002

Yellow Antenna ID Band (pack of 10)

Motorola 32012144003

32012144003

Green Antenna ID Band (pack of 10)

Motorola 32012144004

32012144004

Blue Antenna ID Band (pack of 10)

Motorola 32012144005

32012144005

Purple Antenna ID Band (pack of 10)

Motorola IMPRES Two-way Batteries

Motorola PMNN4807

PMNN4807

IMPRES Li-Ion IP68 2200T Battery

Motorola PMNN4810

PMNN4810

IMPRES Li-Ion TIA4950 IP68 3200T Battery

Motorola HLN6602

HLN6602

Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch

Motorola HLN9985

HLN9985

Waterproof Bag with large strap for securely carrying Motorola two-way radios

Motorola NTN5243

NTN5243

Adjustable Nylon Carrying Strap

Motorola RLN6486

RLN6486

Leather Radio Strap

Motorola RLN6487

RLN6487

Leather Radio Strap - XL

Motorola RLN6488

RLN6488

Anti-Sway Strap for Leather Radio Straps

Motorola PMLN4651

PMLN4651

2" Belt Clip

Motorola PMLN5610

PMLN5610

2.5" Replacement Swivel Belt Loop

Motorola PMLN5611

PMLN5611

3" Replacement Swivel Belt Loop

Motorola PMLN6074

PMLN6074

Wrist Strap

Motorola PMLN7008

PMLN7008

2.5" Belt Clip

Motorola PMLN8299

PMLN8299

Hard Leather Carry Case 3 Inch Swivel Belt Loop Display

Motorola PMLN8300

PMLN8300

Hard Leather Carry Case 2.5 Inch Swivel Belt Loop Display

Motorola PMLN8301

PMLN8301

Hard Leather Carry Case 3 Inch Fixed Belt Loop Display

Motorola PMLN8302

PMLN8302

Hard Leather Carry Case 3 Inch Swivel Belt Loop Non Display

Motorola PMLN8303

PMLN8303

Hard Leather Carry Case 2.5 Inch Swivel Belt Loop Non Display

Motorola PMLN8304

PMLN8304

Hard Leather Carry Case 3 Inch Fixed Belt Loop Non Display

Desktop, Single & Multi-unit Chargers

Motorola 25009297001

25009297001

SUC Power Supply Adapter, US Plug

Motorola 3087791G01

3087791G01

MUC Power Cord Only, US

Motorola NNTN7616

NNTN7616

IMPRES Single-Unit Rapid Rate Vehicular Charger, heavy-duty permanent mount

Motorola NNTN8525

NNTN8525

Travel Charger, Rapid Rate with voltage-regulated adapter, custom charger base, mounting bracket and coil cord

Motorola PMPN4284

PMPN4284

IMPRES 6 pocket, 1 display charger

Motorola PMPN4576

PMPN4576

IMPRES 2 Single Charger & US Power Supply

Motorola PS000242A01

PS000242A01

Power Supply Adaptor

Motorola BR000272A01

BR000272A01

Wall Mount Bracket for PMPN4284

Motorola WPLN4243

WPLN4243

IMPRES Single-Unit Charger Base

Motorola PMLN8092

PMLN8092

Acoustic Tube With Rubber Earbud, Replacement Kit

Motorola PMLN8120

PMLN8120

3.5mm Receive Only Xtra Loud Translucent Tube RSM Earpiece

Motorola PMLN8295

PMLN8295

2-Wire Swivel Loud Audio Earpiece With Eartip

Motorola PMLN8337

PMLN8337

1-Wire Single Earbud With Removable Earhook Loud Audio Earpiece

Motorola PMLN8341

PMLN8341

1-Wire Surveillance Kit With Loud Audio Translucent Tube

Motorola PMLN8342

PMLN8342

2-Wire Surveillance Kit With Loud Audio Translucent Tube

Motorola PMLN8343

PMLN8343

3-Wire Surveillance Kit With Loud Audio Translucent Tube

Motorola PMLN8363

PMLN8363

Rubber Sleeve For Earbud, S "QTY 1, Pack Of 25"

Motorola PMLN8364

PMLN8364

Rubber Sleeve For Earbud, M "QTY 1, Pack Of 25"

Motorola PMLN8365

PMLN8365

Rubber Sleeve For Earbud, L "QTY 1, Pack Of 25"

Motorola PMLN8085

PMLN8085

Behind-the-Head Headset

With flexible boom microphone and PTT, noise reduction 24dB, TIA compliance

Motorola PMLN8086

PMLN8086

Over-the-Head Headset

With flexible boom microphone and PTT, noise reduction 24dB, TIA compliance

Motorola PMLN8297

PMLN8297

GCAI-Mini PTT NEXUS Adapter

Remote Speaker Microphone (RSM)

Motorola PMMN4127

PMMN4127

Operational Critical Wireless RSM WM500

Motorola PMMN4128

PMMN4128

RM780 IMPRES™ RSM, 3.5mm earpiece, radio controls, IP68, HAZLOC

Motorola PMMN4131

PMMN4131

RM730 IMPRES Windporting Remote Speaker Microphone, Small (IP68)

Motorola PMMN4140

PMMN4140

RM760 IMPRES Windporting Remote Speaker Microphone, Large (IP68)

Motorola PMKN4232

PMKN4232

Replacement Cable For RSM

Motorola PMLN8121

PMLN8121

Low Profile Swivel Clip

Motorola PMLN8122

PMLN8122

Replacement Dust Cover For RSM (Pack of 10)

The Motorola MOTOTRBO R7 is available in the following models.

Non-Display CAPABLE Models

  • AAH06JDC9WA1AN VHF, 136-174 MHz, 5 Watts, 64 Channels, Wi-Fi Capable
  • AAH06RDC9WA1AN UHF, 403-512 MHz, 4 Watts, 64 Channels, Wi-Fi Capable
  • AAH06UCC9WB1AN 800/900, 806-941 MHz, 2.5 Watts, 64 Channels, Wi-Fi Capable

Non-Display ENABLED Models

  • AAH06JDC9RA1AN VHF, 136-174 MHz, 5 Watts, 64 Channels, Wi-Fi Enabled
  • AAH06RDC9RA1AN UHF, 403-512 MHz, 5 Watts, 64 Channels, Wi-Fi Enabled
  • AAH06UCC9RB1AN 800/900, 806-941 MHz, 2.5 Watts, 64 Channels, Wi-Fi Enabled

Display CAPABLE Models

  • AAH06JDN9WA1AN VHF, 136-174 MHz, 5 Watts, 1000 Channels, Wi-Fi Capable
  • AAH06RDN9WA1AN UHF, 403-512 MHz, 5 Watts, 1000 Channels, Wi-Fi Capable
  • AAH06UCN9WB1AN 800/900, 806-941 MHz, 2.5 Watts, 1000 Channels, Wi-Fi Capable

Non-Display ENABLED Models

  • AAH06JDN9RA1AN VHF, 136-174 MHz, 5 Watts, 1000 Channels, Wi-Fi Enabled
  • AAH06RDN9RA1AN UHF, 403-512 MHz, 5 Watts, 1000 Channels, Wi-Fi Enabled
  • AAH06UCN9RB1AN 800/900, 806-941 MHz, 2.5 Watts, 1000 Channels, Wi-Fi Enabled
